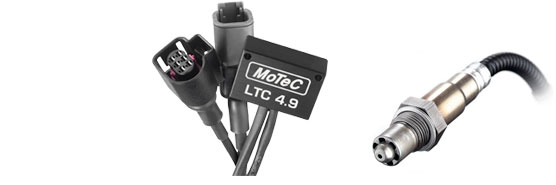

MoTeC LTC (Lambda to CAN Module)
MoTeC LTC (Lambda to CAN Module)

Vendor: MoTeC

Description:

MoTeC’s LTC (Lambda to CAN) modules monitor, control, and diagnose Bosch LSU 4.9 Lambda sensors while transmitting readings on a CAN bus. When multiple LTCs are used, up to 32 Lambda sensors can be configured on a single CAN bus allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

NOTE: DOES NOT INCLUDE SENSOR

General

  • Provides accurate Lambda measurement even when exhaust gas temperature is changing rapidly (heating or cooling)
  • Calibrated by the user for a particular sensor using either the initial sensor factory calibration or a free air calibration
  • Install as a single unit or in multiples
  • Pre-configured to suit a single LTC unit installation
  • Cost effective

Measurement/Configuration

  • Compatible fuel:

               -gasoline/petrol

               -alcohol

               -LPG

               -diesel

               -user defined 'blend' fuel

  • Comprehensive diagnostic and status channels
  • Calibration methods:

               -automatic, using the sensor's built-in calibration resistor

               -known oxygen environment

  • Standard configuration tables
  • Configurable to compensate for sensor aging and contamination
  • Accuracy +/– 1.5%
  • Operating range:

               -Lambda 0.65 to 10

               -AFR 9.5 to 147 for gasoline/petrol

    NOTE: MoTeC’s LTC is also available in a dual version, LTCD
