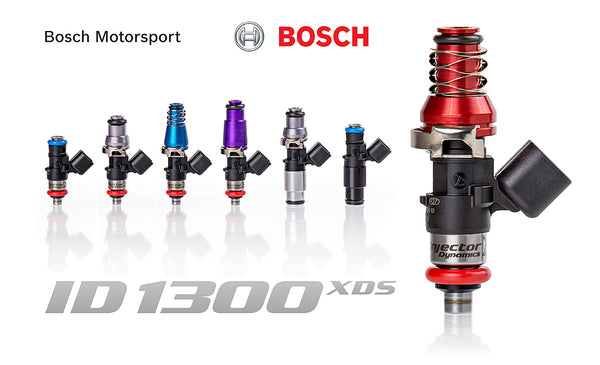

Injector Dynamics ID1300-XDS Fuel Injector
Type: Fuel Injectors
Vendor: Injector Dynamics
Description:
The ID1300x² is an all new injector, designed in partnership with Bosch Motorsport. This collaboration has given us the ability to design a high flow injector with characteristics specific to the needs of the motorsport tuner. The ID1300x² was designed with alternative fuels in mind, and was originally the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market.
While the ID1300x² was designed with an eye towards ethanol fueled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300x² has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behavior under these conditions. In addition to its multi-fuel capabilities, the compact body of the ID1300x² allows fitment in 200+ applications, making it the most versatile injector in our lineup.
To learn more about the nature and development of this true motorsport injector and its siblings the ID1050x and ID1700x, follow this link.
Basic Specifications
Nominal Flow Rate – 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
Electrical Connector – USCAR
Basic Specifications
Nominal Flow Rate – 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
Electrical Connector – USCAR
ID1300x² Dynamic Flow Data
| Fuel Pressure | Offset | Slope | ||||
| (psid) | (µsec) | (cc/min) | ||||
| 8 Volts | 10 Volts | 12 Volts | 14 Volts | 16 Volts | ||
| 40.0 | 2175 | 1575 | 1235 | 1020 | 855 | 1275 |
| 43.5 | 2230 | 1610 | 1255 | 1035 | 865 | 1335 |
| 45 | 2255 | 1620 | 1265 | 1040 | 870 | 1360 |
| 50 | 2350 | 1665 | 1290 | 1055 | 880 | 1440 |
| 55 | 2445 | 1715 | 1320 | 1070 | 895 | 1520 |
| 60 | 2535 | 1765 | 1355 | 1095 | 915 | 1590 |
| 65 | 2620 | 1830 | 1395 | 1125 | 935 | 1655 |
| 70 | 2705 | 1895 | 1445 | 1160 | 960 | 1715 |
| 75 | 2790 | 1955 | 1480 | 1185 | 975 | 1770 |
| 80 | 2875 | 2015 | 1510 | 1205 | 990 | 1820 |
| 85 | N/A | 2075 | 1540 | 1220 | 1005 | 1860 |
| 90 | N/A | 2135 | 1580 | 1250 | 1025 | 1895 |
| 95 | N/A | 2195 | 1625 | 1280 | 1050 | 1925 |
| 100 | N/A | 2250 | 1675 | 1320 | 1080 | 1950 |
ID1300x Dynamic Flow Data
| Fuel Pressure | Offset | Slope | ||||
| (psid) | (µsec) | (cc/min) | ||||
| 8 Volts | 10 Volts | 12 Volts | 14 Volts | 16 Volts | ||
| 43.5 | 2340 | 1585 | 1180 | 940 | 750 | 1345 |
| 45 | 2385 | 1605 | 1195 | 950 | 760 | 1365 |
| 50 | 2540 | 1665 | 1250 | 985 | 790 | 1445 |
| 55 | 2695 | 1730 | 1300 | 1020 | 820 | 1520 |
| 60 | 2850 | 1810 | 1350 | 1055 | 845 | 1590 |
| 65 | 3010 | 1890 | 1395 | 1095 | 875 | 1655 |
| 70 | N/A | 1980 | 1445 | 1135 | 900 | 1715 |
| 75 | N/A | 2080 | 1500 | 1175 | 930 | 1775 |
| 80 | N/A | N/A | 1560 | 1220 | 960 | 1830 |
| 85 | N/A | N/A | 1620 | 1260 | 995 | 1885 |
| 90 | N/A | N/A | 1685 | 1300 | 1025 | 1935 |
Plug and Play Data:
Copy calibration files directly to your ECU straight from the manufacturer!
Fitment by Make & Model
| Universal | 1300.34.14.14 | $234.15 | |
| 1300.34.14.15 | $234.15 | ||
| 1300.48.11.14 | $236.25 | ||
| 1300.48.11.WRX | $236.25 | ||
| 1300.48.11.F20 | $236.25 | ||
| 1300.48.14.14 | $236.25 | ||
| 1300.48.14.15 | $236.25 | ||
| 1300.48.14.R35 | $236.25 | ||
| 1300.48.14.14B | $236.25 | ||
| 1300.60.14.14 | $236.25 | ||
| 1300.60.14.14-O | $236.25 | ||
| 1300.60.14.D | $236.25 | ||
| 1300.60.14.14B | $241.50 | ||
| 1300.60.11.14 | $236.25 | ||
| 1300.60.11.14-O | $236.25 | ||
| 1300.60.11.D | $236.25 | ||
| Arctic Cat | 1100 Turbo 09-16 | 1300.28.01.36.11.4 | $945.00 |
| Audi | Audi EA888 Gen 3 | 1300.60.14.14B.4 | $936.60 |
| R8 2015+ | 1300.34.14.14.10 | $2,341.50 | |
| Audi RS3/TTRS | 1300.34.14.14.5 | $1,170.75 | |
| Audi VR6 (12 valve) | 1300.60.14.14B.6 | $1,449.00 | |
| Audi VR6 (24 valve) | N/A | ||
| BMW | E30 M3 88-91 | 1300.60.14.14.4 | $945.00 |
| E36 M3 96-99 | 1300.60.14.14.6 | $1,417.50 | |
| E46 M3 01-06 | 1300.48.14.14.6 | $1,417.50 | |
| E90 / E92 / E93 M3 07+ | 1300.48.14.14.8 | $1,890.00 | |
| M54 | 1300.02.01.60.14.6 | $1,449.00 | |
| M Coupe / M Roadster 98-00 | 1300.60.14.14.6 | $1,417.50 | |
| 920i / 740i | 1300.60.14.14.8 | $1,890.00 | |
| 328 96-98 | 1300.60.14.14.6 | $1,417.50 | |
| Buick | Turbo Regal | 1300.60.14.14.6 | $1,417.50 |
| Grand National | 1300.60.14.14.6 | $1,417.50 | |
| Cadillac | CTS-V 09-14 (LSA) | 1300.34.14.15.8 | $1,873.20 |
| Can Am | Maverick Turbo 15-17 | 1300.34.14.14.2 | $468.30 |
| Maverick X3 2017 | 1300.34.14.14.3 | $702.45 | |
| Maverick X3 Max 2017 | 1300.34.14.14.3 | $702.45 | |
| Maverick X3 Turbo 2018+ | 1300.34.14.14.3 | $702.45 | |
| Maverick X3 Turbo R 2018+ | 1300.34.14.14.3 | $702.45 | |
| Maverick X3 Turbo RR 2020+ | 1300.34.14.14.3 | $702.45 | |
| Outlander ATV 08 | 1300.48.14.14.2 | $472.50 | |
| Chevrolet | LS3/LS7/L76/L92/L99 | 1300.34.14.15.8 | $1,873.20 |
| LS2 | 1300.48.14.15.8 | $1,890.00 | |
| LS1/LS6 | 1300.60.14.14.8 | $1,890.00 | |
| Camaro 93-96 (LT1) | 1300.60.14.14.8 | $1,890.00 | |
| Camaro 98-01 (LS1) | 1300.60.14.14.8 | $1,890.00 | |
| Camaro 10-15 (LS3) | 1300.34.14.15.8 | $1,873.20 | |
| Camaro ZL1 (LSA) | 1300.34.14.15.8 | $1,873.20 | |
| C5 Corvette (incl Z06) | 1300.60.14.14.8 | $1,890.00 | |
| C6 Corvette | 1300.34.14.15.8 | $1,873.20 | |
| C6 Z06 (LS7) | 1300.34.14.15.8 | $1,873.20 | |
| C6 ZR1 (LS9) | 1300.34.14.15.8 | $1,873.20 | |
| Cobalt SS (super) | 1300.60.14.14B.4 | $966.00 | |
| Dodge / Chrysler | Neon SRT-4 | 1300.48.14.14.4 | $945.00 |
| Caliber SRT-4 | 1300.48.14.14.4 | $945.00 | |
| 300C SRT-8 | 1300.48.14.14B.8 | $1,890.00 | |
| Challenger SRT-8 | 1300.48.14.14B.8 | $1,890.00 | |
| Magnum SRT-8 | 1300.48.14.14B.8 | $1,890.00 | |
| Hellcat/Trackhawk/Demon | 1300.48.14.14.8 | $1,890.00 | |
| Viper 03-07 | 1300.60.14.14.10 | $2,362.50 | |
| Ram SRT-10 04-06 | 1300.60.14.14.10 | $2,362.50 | |
| Viper 08+ | 1300.48.14.14B.10 | $2,362.50 | |
| Ford | Focus ZX3 | 1300.60.14.14.4 | $945.00 |
| Focus SVT | 1300.60.14.14.4 | $945.00 | |
| Focus RS | 1300.60.14.14.4 | $945.00 | |
| Focus RS MK II-IV | 1300.48.14.14.5 | $1,181.25 | |
| SVT Lightning | 1300.60.14.14.8 | $1,890.00 | |
| F150 5.0 2011+ | 1300.60.14.14B.8 | $1,932.00 | |
| F150 Harley Davidson | 1300.60.14.14.8 | $1,890.00 | |
| Mustang SVO | 1300.60.14.14.4 | $945.00 | |
| Mustang GT 88-96 | 1300.60.14.14.8 | $1,890.00 | |
| Mustang GT 97-04 | 1300.60.14.14.8 | $1,890.00 | |
| Mustang GT 05-10 | 1300.60.14.14.8 | $1,890.00 | |
| Mustang GT 2011+ (includes GT350) | 1300.60.14.14B.8 | $1,932.00 | |
| Mustang Cobra 99-04 | 1300.60.14.14.8 | $1,890.00 | |
| Mustang GT500 07-14 | 1300.48.14.14.8 | $1,890.00 | |
| Mustang GT500 2020+ | 1300.60.14.14B.8 | $1,932.00 | |
| Falcon GT and GS 5.0 – 2010+ | 1300.60.14.14.8-PU | $1,936.00 | |
| Falcon XR6T (FG) | 1300.48.14.14B.6 | $1,417.50 | |
| Falcon XR6T (BA and BF) | 1300.60.14.14B.6 | $1,521.45 | |
| SVT Raptor 2011-2014 | 1300.60.14.14B.8 | $1,932.00 | |
| Raptor 2017+ | 1300.34.14.14.6 | $1,404.90 | |
| Holden | Commodore VT (V6) | 1300.60.14.14.6 | $1,417.50 |
| Commodore VTII (LS1) | 1300.60.14.14.8 | $1,890.00 | |
| Commodore VX (LS1) | 1300.60.14.14.8 | $1,890.00 | |
| Commodore VXII (V6) | 1300.60.14.14.6 | $1,417.50 | |
| Commodore VY (LS1) | 1300.60.14.14.8 | $1,890.00 | |
| Commodore VS/VY (SCV6) | 1300.60.14.14.6 | $1,417.50 | |
| Commodore VZ (LS2) | 1300.48.14.15.8 | $1,890.00 | |
| Commodore W427 | 1300.34.14.15.8 | $1,873.20 | |
| Commodore E-HSV | 1300.34.14.15.8 | $1,873.20 | |
| Monaro (LS1) | 1300.60.14.14.8 | $1,890.00 | |
| Monaro (LS2) | 1300.48.14.15.8 | $1,890.00 | |
| Honda/Acura | Accord 92-95 | 1300.60.11.14.4 | $945.00 |
| Accord 96-02 | 1300.60.11.14.4 | $945.00 | |
| Accord 03-07 | 1300.48.11.F20.6 | $1,417.50 | |
| Civic 88-95 | 1300.60.11.14.4 | $945.00 | |
| Civic 96-00 | 1300.60.11.14.4 | $945.00 | |
| Civic 02-05 Si | 1300.48.14.14.4 | $945.00 | |
| Civic 06-11 | 1300.48.14.14.4 | $945.00 | |
| Civic Si 12-15 | 1300.07.21.48.14.4 | $945.00 | |
| Odyssey 02-04 | 1300.48.11.F20.6 | $1,417.50 | |
| Prelude 92-96 | 1300.60.11.14.4 | $945.00 | |
| Prelude 97-01 | 1300.60.11.14.4 | $945.00 | |
| S2000 00-05 | 1300.48.11.F20.4 | $945.00 | |
| S2000 06-09 | 1300.48.14.14.4 | $945.00 | |
| CL 01-03 | 1300.48.11.F20.6 | $1,417.50 | |
| Integra 90-95 | 1300.60.11.14.4 | $945.00 | |
| Integra 96-01 | 1300.60.11.14.4 | $945.00 | |
| NSX 91-96 | 1300.60.11.14-O.6 | $1,417.50 | |
| NSX 97-05 | 1300.60.11.14-O.6 | $1,417.50 | |
| RSX 02-09 | 1300.48.14.14.4 | $945.00 | |
| TL 01-03 | 1300.48.11.F20.6 | $1,417.50 | |
| TSX 04-10 | 1300.48.14.14.4 | $945.00 | |
| Honda Powersports | CBR1000RR 2004-2007 | 1300.07.01.48.11.4 | $945.00 |
| CBR1000RR 2008+ | 1300.07.02.34.11.4 | $936.60 | |
| Pioneer 1000 2016+ | 1300.07.03.34.14.2 | $468.30 | |
| Talon 2019+ | 1300.07.03.34.14.2 | $468.30 | |
| Hyundai | Genesis 2.0t 09-12 | 1300.48.14.R35.4 | $945.00 |
| Genesis 2.0t 13-14 | 1300.60.14.14.4 | $945.00 | |
| Genesis V6 09-12 | 1300.34.14.14.6 | $1,404.90 | |
| Infiniti | G35 | 1300.48.14.14.6 | $1,417.50 |
| G37 | 1300.48.14.R35.6 | $1,417.50 | |
| G20 91-96 (11mm) | 1300.60.11.14.4 | $945.00 | |
| G20 91-96 (14mm) | 1300.60.14.14.4 | $945.00 | |
| G20 99-02 (11mm) | 1300.60.11.14.4 | $945.00 | |
| G20 99-02 (14mm) | 1300.60.14.14.4 | $945.00 | |
| Kawasaki | ZX10 | 1300.34.11.D.4 | $936.60 |
| ZX14 | 1300.34.11.D.4 | $936.60 | |
| Lamborghini | Gallardo 04-13 | 1300.48.14.14.10 | $2,362.50 |
| Huracan | 1300.34.14.14.10 | $2,341.50 | |
| Lexus | 2JZ-GE Air-Assist | 1300.30.02.60.11.6 | $1,506.75 |
| SC400 | 1300.60.11.D.8 | $1,890.00 | |
| Lotus | Exige/Elise 05+ | 1300.30.01.60.11.4 | $995.40 |
| Mazda | Miata 90-05 | 1300.11.02.60.11.4-PU | $995.40 |
| Mazdaspeed Miata | 1300.11.02.60.11.4 | $945.00 | |
| Miata 06-14 | 1300.60.14.14B.4 | $966.00 | |
| RX-7 79-84 (11mm) | 1300.11.03.60.11.2 | $472.50 | |
| RX-7 79-84 (14mm) | 1300.11.06.60.14.2 | $472.50 | |
| RX-7 85-86 (11mm) | 1300.11.03.60.11.2 | $472.50 | |
| RX-7 85-86 (14mm) | 1300.11.06.60.14.2 | $472.50 | |
| RX-7 87-92 (11mm) | 1300.11.03.60.11.2 | $472.50 | |
| RX-7 87-92 (14mm) | 1300.11.06.60.14.2 | $472.50 | |
| RX-7 93-95 (11mm) | 1300.11.03.60.11.2 | $472.50 | |
| RX-7 93-95 (14mm) | 1300.11.06.60.14.2 | $472.50 | |
| RX-8 03-11 (secondaries only) | 1300.60.11.D.2 | $472.50 | |
| McLaren | MP4-12C | 1300.34.14.14.8 | $1,873.20 |
| 570S | 1300.34.14.14.8 | $1,873.20 | |
| 600LT | 1300.34.14.14.8 | $1,873.20 | |
| 1,125S | 1300.34.14.14.8 | $1,873.20 | |
| 675LT | 1300.34.14.14.8 | $1,873.20 | |
| P1 | 1300.34.14.14.8 | $1,873.20 | |
| 720S | 1300.34.14.14.16 | $3,746.40 | |
| Senna | 1300.34.14.14.16 | $3,746.40 | |
| Mitsubishi | Evo III – IX | 1300.60.11.D.4 | $945.00 |
| Evo X | 1300.48.14.14B.4 | $945.00 | |
| Eclipse GST/GSX | 1300.60.11.D.4 | $945.00 | |
| Galant VR4 | 1300.60.11.D.4 | $945.00 | |
| 3000GT VR4 | 1300.60.11.D.6 | $1,417.50 | |
| Nissan | 300ZX TT (90-96) 11mm | 1300.60.11.14.6 | $1,417.50 |
| 300ZX TT (90-96) 14mm | 1300.60.14.14.6 | $1,417.50 | |
| 350Z | 1300.48.14.14.6 | $1,417.50 | |
| 370Z | 1300.48.14.R35.6 | $1,417.50 | |
| GTR-R32, R33, R34 (11mm) | 1300.60.11.D.6 | $1,417.50 | |
| GTR-R32, R33, R34 (14mm) | 1300.60.14.D.6 | $1,417.50 | |
| GTR (R35) | 1300.48.14.R35.6 | $1,417.50 | |
| GTR (R35) FOR V1 T1 Rails | 1300.60.14.14-O.6 | $1,417.50 | |
| 240SX-S13/S14/S15 (11mm) | 1300.60.11.14.4 | $945.00 | |
| 240SX-S13/S14/S15 (14mm) | 1300.60.14.14.4 | $945.00 | |
| SR20DET FWD (11mm) | 1300.60.11.14.4 | $945.00 | |
| SR20DET FWD (14mm) | 1300.60.14.14.4 | $945.00 | |
| Patrol | 1300.48.14.14.6 | $1,417.50 | |
| Sentra SE-R Spec V 00-06 | 1300.48.14.14.4 | $945.00 | |
| Titan 04+ | 1300.48.14.14.8 | $1,890.00 | |
| Polaris | XP 1000 | 1300.34.14.14.2 | $468.30 |
| XP 4 1000 | 1300.34.14.14.2 | $468.30 | |
| RZR (All Turbo Submodels) | 1300.34.14.14.2 | $472.50 | |
| Pontiac | Firebird (93-97) LT1 | 1300.60.14.14.8 | $1,890.00 |
| Firebird (98-02) LS1 | 1300.60.14.14.8 | $1,890.00 | |
| Trans-Am (93-97) LT1 | 1300.60.14.14.8 | $1,890.00 | |
| Trans-Am (98-02) LS1 | 1300.60.14.14.8 | $1,890.00 | |
| Turbo T/A (89 Anniv.) | 1300.60.14.14.6 | $1,417.50 | |
| GTO (2004) LS1 | 1300.60.14.14.8 | $1,890.00 | |
| GTO (2005-2006) LS2 | 1300.48.14.15.8 | $1,890.00 | |
| G8 GT | 1300.34.14.15.8 | $1,873.20 | |
| G8 GXP | 1300.34.14.15.8 | $1,873.20 | |
| Porsche | 996/997.1 | 1300.60.14.14.6 | $1,417.50 |
| 996/997.1 TT | 1300.48.14.14.6 | $1,417.50 | |
| 993/911 84-98 (non turbo) | 1300.60.14.14.6 | $1,417.50 | |
| Saturn | Ion Redline | 1300.60.14.14B.4 | $966.00 |
| Sky (Non turbo) | 1300.60.14.14B.4 | $966.00 | |
| Sky Redline (turbo) | N/A | ||
| Scion | tC (05-10) 2.4L | 1300.17.01.60.11.4 | $995.40 |
| xB (01-15) | 1300.60.11.D.4 | $945.00 | |
| FR-S (13-16) | 1300.18.04.36.11.4 | $945.00 | |
| Ski-Doo | 1200 E-Tec 09-12 | 1300.48.14.14.3 | $708.75 |
| Subaru | STi (04-06) | 1300.18.01.48.14.4 | $1,144.50 |
| WRX (02-14) / STi (07-20) | 1300.48.11.WRX.4 | $945.00 | |
| Legacy GT / Forester XT (07-11) | 1300.48.11.WRX.4 | $945.00 | |
| BRZ (2013+) | 1300.18.04.36.11.4 | $945.00 | |
| Suzuki | Hayabusa 99-07 | 1300.19.01.48.11.4 | $945.00 |
| Hayabusa Gen 2 – 8 inj | 1300.HTP.34.11.4 | $945.00 | |
| Toyota | Corolla GTS (83-87) 4AGE | 1300.60.11.D.4 | $945.00 |
| Corolla CE, S, LE (03-04) | 1300.60.11.D.4 | $945.00 | |
| GR86 (2017+) | 1300.18.04.36.11.4 | $945.00 | |
| Matrix (01-03) | 1300.60.11.D.4 | $945.00 | |
| MR-2 Turbo (90-96) 3S-GTE (11mm) | 1300.60.11.14.4 | $945.00 | |
| MR-2 Turbo (90-96) 3S-GTE (14mm) | 1300.60.14.14.4 | $945.00 | |
| MR-2 N/A (90-96) 5SFE | 1300.60.11.D.4 | $945.00 | |
| MR-2 Spyder (00-05) 1ZZ-FE | N/A | ||
| Supra Turbo (87.5-92) 7M-GTE | 1300.60.11.D.6 | $1,417.50 | |
| Supra Turbo (93-98) 2JZ-GTE (11mm) | 1300.60.11.14.6 | $1,417.50 | |
| Supra Turbo (93-98) 2JZ-GTE (14mm) | 1300.60.14.14.6 | $1,417.50 | |
| Supra Turbo (93-98) 2JZ-GTE (Radium Rail) | 1300.34.14.14.6 | $1,404.90 | |
| Toyota 1JZ VVT-i | 1300.60.11.D.6 | $1,417.50 | |
| Supra NA (93-98) 2JZ-GE | 1300.60.11.D.6 | $1,417.50 | |
| 2JZ-GE Air-Assist | 1300.30.02.60.11.6 | $1,470.00 | |
| Celica All-Trac (89-99) 3S-GTE (11mm) | 1300.60.11.14.4 | $945.00 | |
| Celica All-Trac (89-99) 3S-GTE (14mm) | 1300.60.14.14.4 | $945.00 | |
| Celica GT (00-05) 1ZZ-FE | N/A | ||
| Celica GTS (00-05) 2ZZ-GE | 1300.30.01.60.11.4 | $995.40 | |
| Landcruiser | 1300.60.11.D.6 | $1,417.50 | |
| FJ Cruiser / 4Runner / Tundra | 1300.60.14.D.6 | $1,417.50 | |
| Volkswagen | VW 1.8T | 1300.60.14.14B.4 | $966.00 |
| VW EA888 Gen 3 | 1300.34.14.14.4 | $936.60 | |
| VW VR6 (12v) | 1300.60.14.14B.6 | $1,449.00 | |
| VW VR6 (24V) | N/A | ||
| Yamaha | FX-SHO/FZ Watercraft | 1300.27.01.48.11.4 | $945.00 |
| Apex Snowmobile 06-12 | 1300.48.11.14.4 | $945.00 | |
| Nytro Snowmobile 08-12 | 1300.48.11.14.3 | $708.75 | |
| YXZ1000(R) UTV | 1300.27.02.34.11.3 | $708.75 |
Other fine products
-
$ 2,550.00 -
$ 165.00 -
$ 315.00 -
$ 134.40
