A multi-award winner on debut at PMW Expo and PRI Show, MoTeC’s new Steering Wheel is exceptional in form and function.

The STW195 has been meticulously built and tested to FIA specifications, with a robust carbon fiber body and paddles, and an integrated glare-resistant, high-resolution display. The 5" LCD screen layout, along with the built-in LEDs, can be fully customized using MoTeC’s powerful software tools.

Each component has been carefully selected with input from professional FIA series drivers to ensure optimum quality, comfort, and ease of operation.

Engineered with:

• 7 x 12 Position rotary dials
• 6 x Paddles
• 12 x On / Off buttons
• 16 x Configurable LEDs

• C125 Display Creator included
• C125 I/O included
• Full carbon fiber body
• Krontec quick release system
• Impressive high-resolution 125 mm (approx. 5") color LCD display
• High brightness for sunlight readability
• Complete customization of screen layouts via included Display Creator
• 16 full-color (RGB) LEDs; color, function, and intensity are fully programmable
• FIA marshaling LEDs for sanctioned events
• Dedicated radio PTT loop button
• HVIL (High Voltage Interlock) loop
• Labeling options included
• Optional internal logging
• Easily integrates with CAN-based devices
• GPS Lap Timing
• Supports T2 Telemetry (with upgrade)

• 29618 – C125 120MB LOGGING
• 29620 – C125 PRO ANALYSIS
• 29623 – C125 T2 TELEMETRY
• 22140 – DC MATHS TRANSMIT (1 YR)

• Screen: Color TFT LCD, anti-reflective
• Resolution: 800 x 480 resolution, anti-aliased graphics
• 16 x configurable LEDs

Layouts:

• Selectable fixed layouts
• Fully customizable display layouts with included Display Creator software.
• 48 user-defined, scrollable message lines with programmable overrides
• 3 programmable modes with customizable labels
• Logging - optional (requires upgrades)
• 120 MB internal logging memory
• Logging rates up to 500 samples per second
• Fast Ethernet download
• i2 Standard data analysis software included (Pro Analysis upgrade available)

• 12 x On / Off push buttons
• including 1 x dedicated radio PTT button
• 7 x 12 Position rotary dials
• 4 x On / Off paddles
• 2 x Analogue 0-5V paddles

• 3-axis accelerometer, detection range: +/- 5G
• Dash temperature sensor
• Sensor supply voltage
• Battery voltage

• 2 x CAN buses
• 1 x Configurable with programmable CAN bus speed.
• 1 x Reserved
• 1 x RS232 port with transmit and receive.
• 1 x Ethernet Programming / Data logging

• Operating voltage: 6 to 17 V DC
• Operating current: 0.8 A typical at 14 V (backlight and all LEDs at 100% brightness)
• Reverse battery protection
• Battery transient protection

• Internal: -20 °C to 70 °C (above 60 °C maximum backlight brightness progressively reduced)
• Typical ambient temperature range in free air: -10 °C to 55 °C

• Case Material: Full carbon fiber body
• Quick release system: Krontec QR-30-22P-LW-V
• Size:
• Width < 302 mm
• Height < 191 mm
• Weight: 1940 grams, including quick release system
• 1 x 22-pin Autosport connector

• UNECE Regulation No. 10 (ECE R10)
• Sine wave scan according to LV124
• Design validation shock according to LV124
• Pre-Defined vibration Stress according to LV124
• Low Temp Storage according to ISO-16750-4
• Low Temp Operating according to ISO-16750-4
• High Temp Storage according to ISO-16750-4
• High Temp Operating according to ISO-16750-4
• Temperature Cycling according to ISO 16750-4
• Thermal Shock according to ISO 16750-4
• The device is rated to IP65 (Dust and Water)

Wipe using a clean water-dampened microfibre cloth, followed by a clean dry microfibre cloth.

• Microsoft Windows-based software
• Dash Manager is used for setup and management of the display and data logging system, providing:
• Configuration of the inputs, outputs, LEDs, display, data logging and calculations.
• Offline generation of a configuration file that can then be sent to the device.
• Channel monitoring
• Firmware updating and extensive help screens
• Display Creator allows for full customization of the screen layout.
• i2 Data Analysis software provides the tools for comprehensive data analysis. Standard or Pro* version available
• T2 Telemetry* software

(* available via upgrades )

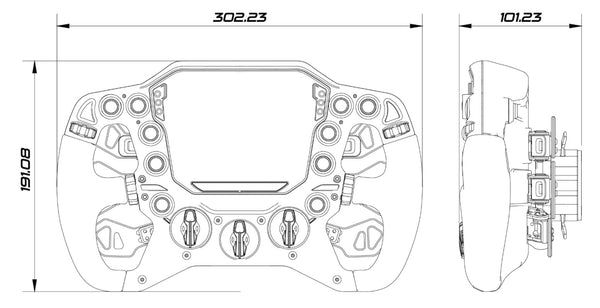

Measurements in mm.

IP rating is dependent upon the user ensuring that the connector entries are waterproof, which, at a minimum, requires all unused wire cavitie
